HEMSCHEIDT Rail offers a comprehensive portfolio of intercar connection systems, especially developed to meet the requirements of modern rail vehicles including light rail vehicles and regional trains.
Flexible and durable solutions for modern vehicle architectures
Our solutions connect vehicle segments securely and durably with minimal maintenance – even under dynamic load conditions that occur with cornering, accelerating or braking.
These solutions include:
- Articulations for trams and light rail vehicles
- Dampers for intercar connections
- High-load bolt connections in accordance with VDI 2230
- Lemniscates

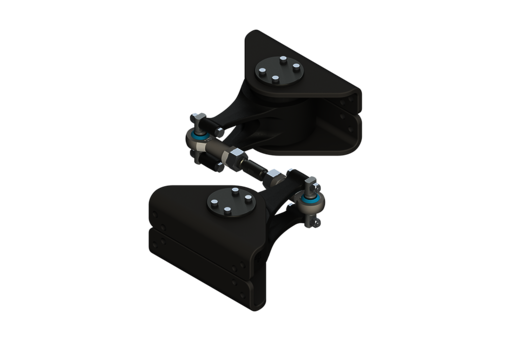

Hemscheidt articulation systems – including yaw articulations, pitch articulations, yaw-roll articulations, and yaw-roll-pitch articulations – deliver controlled movements across multiple degrees of freedom. They protect carbody structures against overloading and provide smooth and precise motion control.

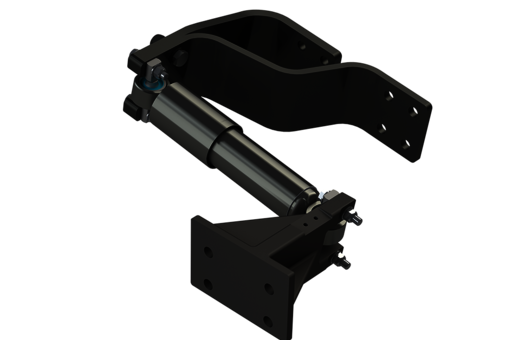

Damping elements complement the systems by giving targeted cushioning for gangway movements, thereby significantly increasing riding comfort.

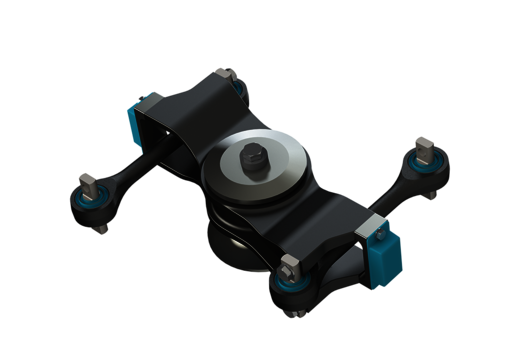

The Lemniscate is a special component for motion control that compensates for pitching movements across two intercar gangways
Our intercar connections at a glance
- Solutions for all vehicle types – from light rail to high-speed trains
- Articulations with rubber-metal technology for optimal damping and long service life
- Damper solutions for carbody connections with return force for self-centering or customized special functions according to customer wishes
- Bolt calculations in accordance with VDI 2230 for maximum safety and reliability
- Custom design using FEM and MBS simulations
- In-house development and manufacturing – from concept specification to series production
